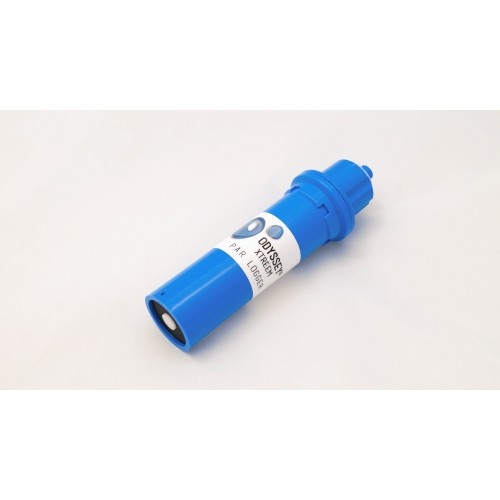

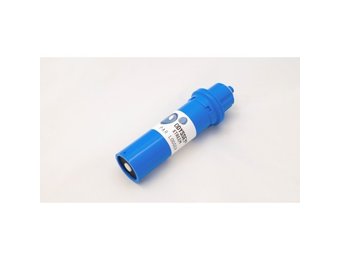

The Photosynthetically Active Radiation (PAR) logger is a true integrating light logger for use in air or underwater for photosynthesis recordings. The PAR reading is stored in the internal non-volatile memory along with the ambient temperature (measured inside the logger) and a timestamp. When in range, the logger wirelessly communicates to the Odyssey® Xtract software application (download free from Play Store) on your android phone or tablet and stores the readings on your device. When the Xtract application detects a network connection, it sends the data to the cloud database servers. Using any standard internet browser, connect to the Odyssey® Xpert Web portal to analyse your data.
Features:
- 400 to 700nm response
- Cosine response
- Low Cost
- Wireless
- Fully submersible to 30m
- Internal Ambient Temperature reading.
- Variable Integration period
- Continuous ring buffer storage
Included in contents
- 1 x Xtreem Photosynthetic Active Radiation Logger
- 2 x AA Batteries
- 1 year data subscription.
Detected Wavelength: Cosine corrected photosynthetic irradiance sensor 400 - 700nm
Ambient Temperature Sensor: Resolution ±0.1°C
Accuracy: ±0.5°C typical
Battery Life: 2 Years - Based on 15min recording intervals, using 12 hours of daylight on average
Memory Capacity: 60,000- Including logger temperature
Operating Temperature: -20 to 55°C
Waterproof: IP68 submersible to 30m
Data Collection Device: Phone/Tablet with Android 6.0 or greater.
Data Communications: Wireless Bluetooth LE 4.0
Datasheet
