HOBO External Temperature Sensor Data Logger MX2304

Name: Onset HOBO External Temperature Sensor Data Logger MX2304
Brand: Onset
Price: 268.33 EUR
Availability: InStock

Everything about Air Measuring Instruments & Weather Stations

Brand: Onset

€268,33 0 In stock: 3-6 Weeks

A weatherproof data logger with one external temperature sensor, leveraging Bluetooth for easy setup and data download.... Show more

Free shipping in the Netherlands from € 35, -
Ordered before 5 p.m. on working days? Shipped the same day!
14-day money back guarantee
We are happy to think along!

Product description

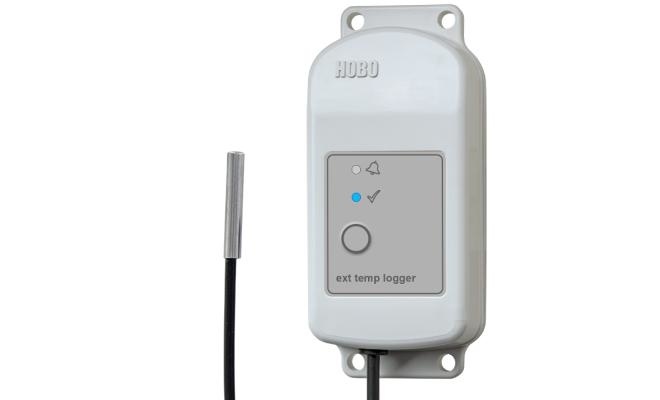

The MX2304 is a weatherproof data logger with one external temperature sensor. Leveraging Bluetooth technology for easy setup and data download directly to your mobile device or Windows computer running Onset's free HOBOconnect app, this logger delivers high-accuracy measurements in harsh outdoor environments.

Please note: Requires a compatible mobile device or Windows computer and the HOBOconnect app.

Features

Convenient wireless setup and download via Bluetooth (100-foot range)
Retrieve data in hard-to-reach locations
Visual alarms alert you to out-of-range conditions
Compact, weatherproof housing with built-in mounting
View current data in real time with Onset’s free HOBOconnect app
Share downloaded data easily from your mobile device
Accuracy: +/- 0.2C°

Specifications Hobo External Temperature Sensor Data Logger MX2304

Temperature Sensor
Range	MX2304 external sensor: -40 to 100°C (-40 to 212°F), with tip and cable immersion in fresh water up to 50°C (122°F) for one year
Accuracy	±0.25°C from -40 to 0°C (±0.45 from -40 to 32°F) ±0.2°C from 0 to 70°C (±0.36 from 32 to 158°F) ±0.25°C from 70 to 100°C (±0.45 from 158 to 212°F), MX2303 and MX2304 only
Resolution	MX2304: 0.04°C (0.072°F)
Drift	<0.01°C (0.018°F) per year
Response Time (typical, to 90% of change)
Temperature	Without Solar Radiation Shield	With RS1/M-RSA Solar Radiation Shield	With RS3-B Solar Radiation Shield
MX2304 external sensor	3 minutes in air moving 1 m/sec; 20 seconds in stirred water	7 minutes in air moving 1 m/sec	4 minutes in air moving 1 m/sec
Logger
Operating Range	-40° to 70°C (-40° to 158°F)
Radio Power	1 mW (0 dBm)
Transmission Range	Approximately 30.5 m (100 ft) line-of-sight
Wireless Data Standard	Bluetooth Low Energy (Bluetooth Smart)
Logging Rate	1 second to 18 hours
Logging Modes	Fixed interval (normal, statistics) or burst
Memory Modes	Wrap when full or stop when full
Start Modes	Immediate, push button, date & time, or next interval
Stop Modes	When memory full, push button, date & time, or after a set logging period
Time Accuracy	±1 minute per month 0° to 50°C (32° to 122°F)
Battery Type	2/3 AA 3.6 Volt lithium, user replaceable
Battery Life	2 years, typical with logging interval of 1 minute and Bluetooth Always On enabled; 5 years, typical with logging interval of 1 minute and Bluetooth Always On disabled. Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life.
Memory	MX2304: 128 KB (84,650 measurements, maximum)
Full Memory Download Time	Approximately 60 seconds; may take longer the further the device is from the logger
Dimensions MX23xx-models	Logger housing: 10.8 x 5.08 x 2.24 cm (4.25 x 2.0 x 0.88 in.) External temperature sensor diameter: 0.53 cm (0.21 in.) External temperature/RH sensor diameter: 1.17 cm (0.46 in.) External sensor cable length: 2 m (6.56 ft) Solar radiation shield bracket: 10.8 x 8.3 cm (4.25 X 3.25 in.)
Weight	Logger: 75.5 g (2.66 oz) Solar radiation shield bracket: 20.4 g (0.72 oz)
Materials	Acetal, silicone gasket, stainless steel screws
Environmental Rating	NEMA 6 and IP67
