The real time images generated with this cameras provide excellent color rendering with high frame rates
STAND-ALONE
No need to open or start a computer or any computer knowledge to use these camera. Most camera settings are done automatically and therefore these cameras are very user friendly. This results in faster, more flexible and compact working conditions
Simply connect the camera to a high definition HD screen, TV-HD or HD-beamer with an HDMI input and the system is ready to go. The mouse-driven built-in software of the cameras enables capturing 1920 x 1080 pixels jpg images on the integrated SD memory card
The embedded software of the cameras features functions like
• image and video capture
• white balance
• auto/manual exposure
• zoom in/out
• horizontal/vertical flip
• video freeze/cancel video freeze
• grid
• display/hide camera control panel
• color adjustment (sharpness / de-noise / saturation / gamma / contrast)
• Wide array of measurment functions
These key properties make the cameras ideal for real time inspections, educational purposes and live demonstrations
TECHNICAL SPECIFICATIONS
Sensor
HDMI 2.0 Mega pixels CMOS high sensitive sensor (Sony)
Format
1/2.8 inch, HDTV 1080p
Pixels
1920 x 1080 pixels (capture mode)
1920 x 1080 pixels (live mode)
HDMI 60 fps
Scan mode
Progressive scan
Pixel size
2.9 x 2.9 μm
Noise
3D Noise reduction function
Sensitivity
1300mv/lux-sec
Color rendering
12 Bits
Signal/Noise (db)
42
Dynamic (db)
69
White balance
Automatic/manual/ROI
Interface
HDMI
Storage
Images are saved to a standard high speed 32 Gb SD memory card (Recommend using SD card of class 4 or higher and ≤128 Gb)
Mounting
C-mount interface
Power supply
DC 12V/ 1A adapter
Operation
-10~ 50 Celsius, 30~80%RH
Storage
-20~ 60 Celsius, 10~60%RH
Supplied with
HDMI cable, DC 12V/ 1A power supply, 32 GB SD Card, USB mouse, 0.5x c-mount adapter, 23.2~30.0/ 30.5mm adapter rings
Power supply
DC 12V/ 1A adapter
Features included in the on-screen software
Image and video Capture, White balance, Auto/ Manual exposure, Zoom In/ Out, Horizontal/ Vertical Flip, Video Freeze/ Cancel Video Freeze, Grid, Display/ Hide Camera Control Panel, Color Adjustment (Sharpness/ Denoise/ Saturation/ Gamma/ Contrast), measurment functions
Compatibility
Suitable for all HDMI screens, monitors and beamers
PACKAGING

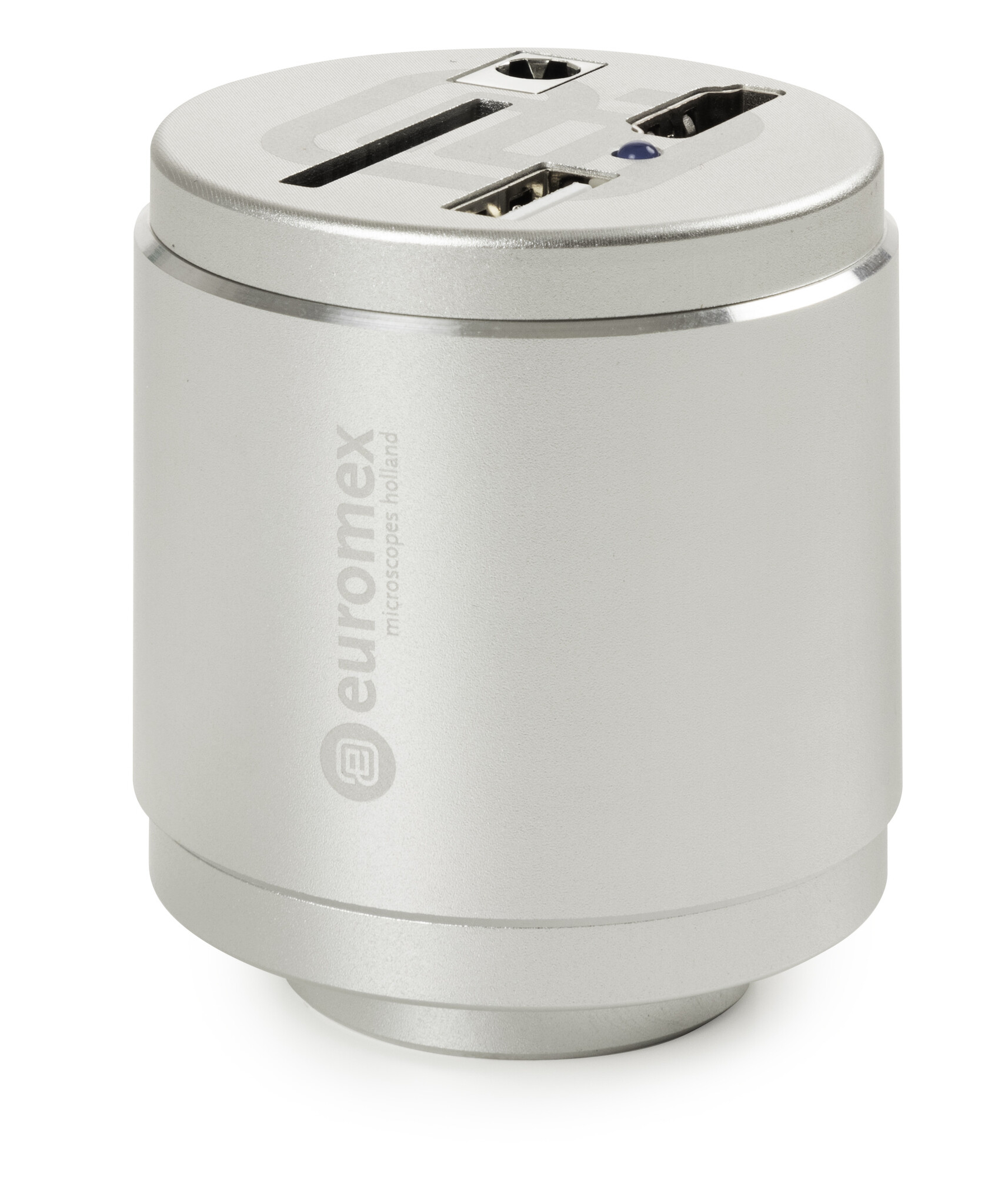

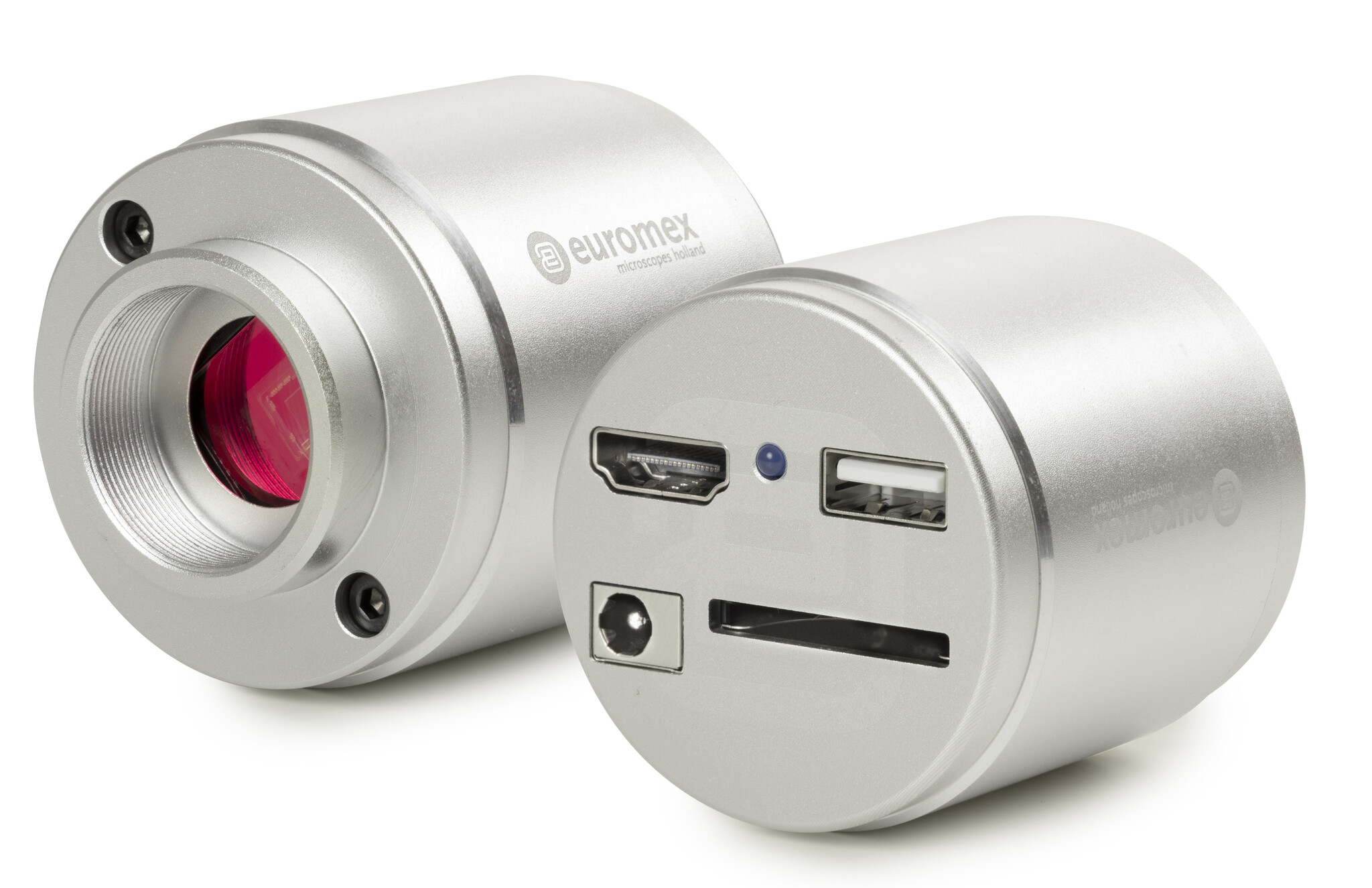

The HD-Mini VC.3023 1080p camera is supplied with a mouse, a 0.5x C-mount adapter for 23.2 mm tubes, 30.0 and 30.5 mm conversion adapters (for use with stereo microscopes), external 12V /1A power supply, 10/100 calibration slide, a 32 GB SD-card, HDMI cable and product manual.
