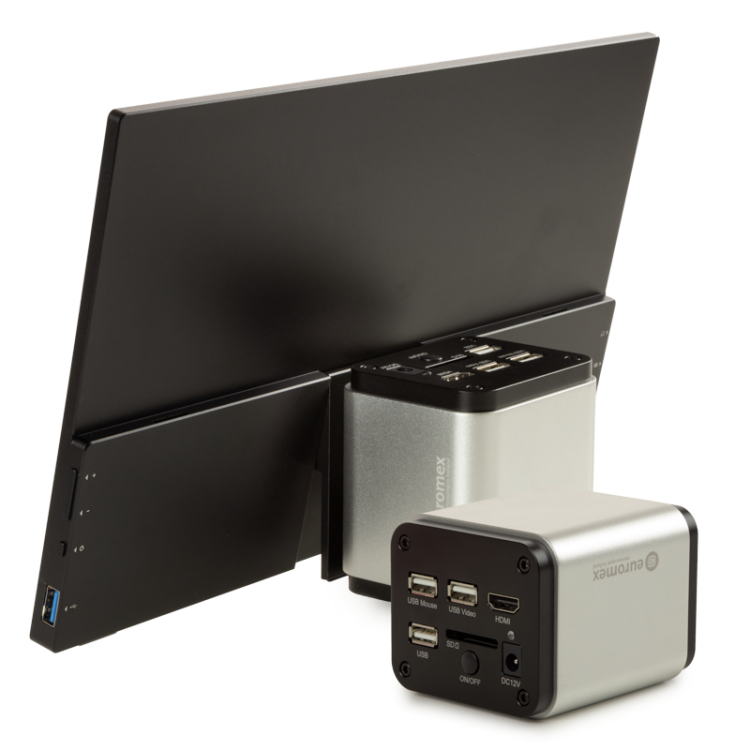

The real time images generated with this Euromex UHD-4K Touch camera provide excellent color rendering at high frame rates, up to 30 frames per second on the included 13 inch HDMI touch-screen. It can also be connected to a large TV or monitor. The UHD-4K Touch high definition camera can be used in three modes: in a stand-alone with its embedded finger-touch or mouse-driven software, in a computer controlled mode or a combination of both.
Perform calibrated measurements, save images and videos and more, all with the touch of your finger. No need of a computer. The menu and controls are displayed on the HD screen and are controlled by either your finger or a mouse connected directly to the camera. More advanced analyses can be done by connecting the UHD-4K Touch to a computer, where ImageFocus Alpha software allows for annotations, measurements, stacking, stitching and many more functions. This versatile camera makes your task more efficient and productive!
Suitable for all Euromex microscopes
Highlights
- Ultra HD /4K, 8 MP13 inch high resolution touch screen
- 1/1.8 inch color 4K Sony sensor
- 3840 x 2160 pixels, 30 fpsReal time images directly on touch screen, TV, monitor or beamer
- Stand alone or used via PC or Mac
- C-mount interface
- 4K HDMI 1.4 standard
- Supplied with ImageFocus Alpha software
Technical Specifications Euromex UHD-4K Touch camera
Sensor
Sony IMX334 CMOS sensor
Format
1/1.8” (7.68 x 4.32)
Pixels
3840 x 2160 pixels, HDMI 1.4 standard,
30fps@4K HDMI or 20fps@4K USB;
Pixel size
2.0 x 2.0 μm
Video recording
8 MP (3840 x 2160) H264/H265 encoded MP4 file
Image capture
8 MP (3840 x 2160) JPEG/TIFF image
HD screen
13” Touch screen
Scan mode
Progressive scan, rolling shutter
Sensitivity
505 mv
Color rendering (bit)
32
Noise
standard noise reduction
Signal/Noise (db)
40.5
Exposure
Automatic/ manual
White balance
Manual/ Auto/ ROI White Balance
Interface
HDMI, USB-2
Storage
SD card 32 GB, included (max. 128 GB) or USB drive, not included
Camerabuttons
On/ Off
Mounting
C-mount
Power supply
DC 12V/1A adapter
Humidity
30~80%RH
Operation temperature
-10~ 50°C
Storage temperature
-20~ 60°C
Supplied with
- 0.5x objective with C-mount,
- 30 and 30.5mm adapters for stereomicroscopes
- 12V/1A power adapter,
- HDMI cable,
- USB mouse ,
- 32 GB SD-card
- USB-2 cable (a male to male),
- 76 x 24 mm calibration slide (1mm/100)
- User manual
- carton box
PC software
Works with ImageFocus Alpha imaging and measuring software for Windows 7/ 8/ 10 (32 and 64 bit configurations) and Linux. A Mac OS version is also supplied (with a few differences in features). The software is downloadable from website, free of charge.
PC requirements Euromex UHD-4K Touch camera
Equal to Intel Core 2, 2.8 GHZ or higher, 4 GB memory, USB-2
EMBEDDED TOUCH CONTROLLED SOFT WARE
(displayed on touch screen, no need for a computer)
- Capture images and videos to SD
- Playback images and videos from SD
- Measurements (like Angle, Line, Horizontal Line, Vertical Line, Rectangle, Circle, Ellipse, Annulus,
- Two Circles, Polygon, Curve, etc)
- Compare images
- Grids
- Digital zoom in/out
- Flip
- Freeze
- Camera settings (white balance, color control etc)
