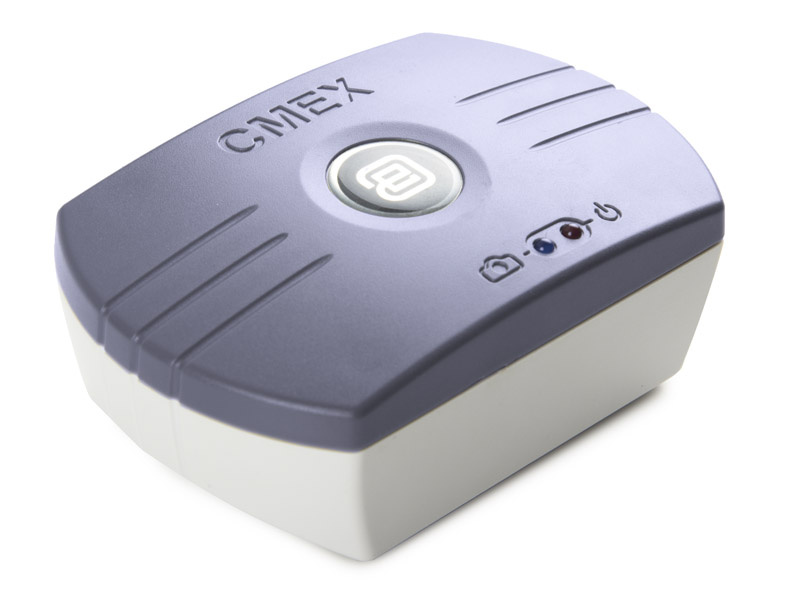

The CMEX-2f, CMEX-5f and CMEX-12f are equipped with an extra fast CMOS sensor with 8 bits grayscale conversion and a 24 bits color rendering. The CMEX-f cameras are equipped with USB-2 data interface and supplied with ImageFocus Plus software
Besides capturing of images and videos, the ImageFocus Plus software allows measurements on still and live images and annotations on captured images, stitching and stacking of images and more. Compatible with Windows 7 and higher both 32 and 64 bits configurations. A Mac version is available.
Technical specifications CMEX-5f
Sensor
CMOS 1/2.8 inch
Pixels
1920 x 2560 pixels, 5.0 Mpix
Scan mode
Progressive, rolling shutter
Pixel size
2.0 μm x 2.0 μm
Filter
RGB
Mount
C-mount
Max fps
Up to 30 frames per second (2560 x 1920 pixels)
Up to 50 frames per second (1600 x 1200 pixels)
Grayscale conversion
8 bits
Color depth
24 bits
Sensitivity
2.0 V/lux-sec @ 550 nm
Exposure
Automatic or manual, from 1 ms to 2 s
White balance
Automatic/manual
Dynamic range
72 db
Data interface
USB 2.0 at 480 Mb/s
Operation
0 – 60° C, 10-85 % humidity
Supplied with

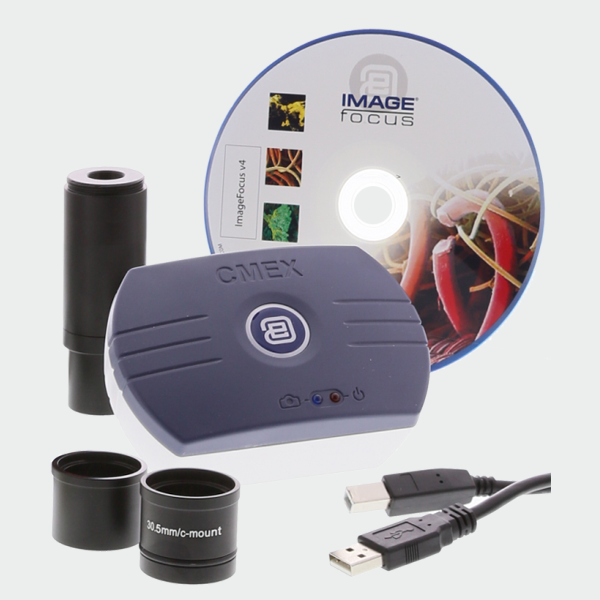

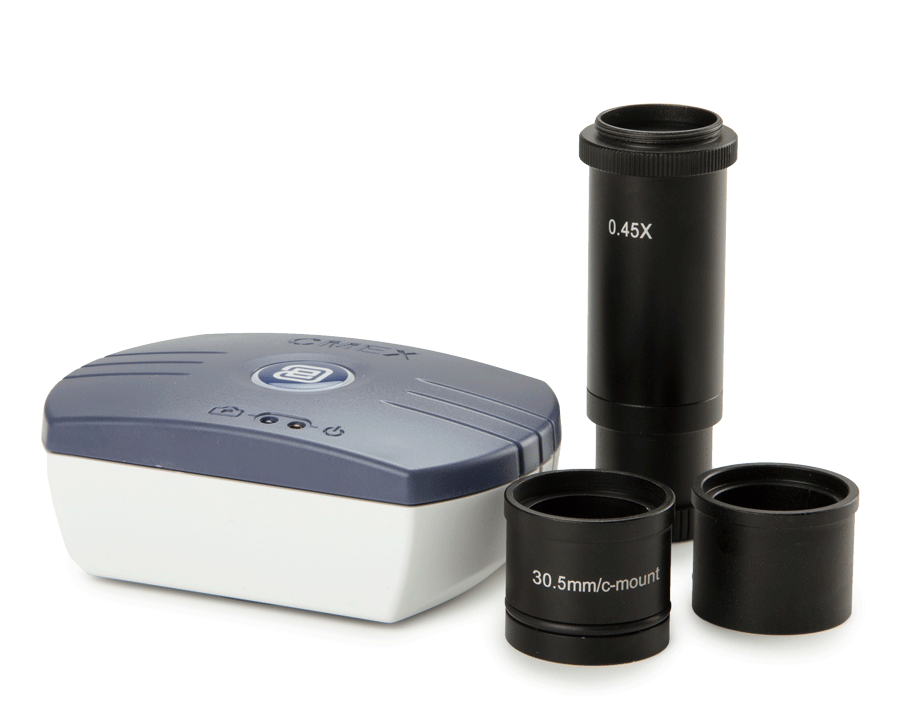

0.45x objective with C-mount, USB 2.0 cable, 30 and 30.5 mm adapters for stereo microscopes, 76 x 24 mm calibration slide, CD ROM with ImageFocus Plus software, carton box
Software
Windows 7 and higher (32 and 64 bit configurations) and Mac OS
