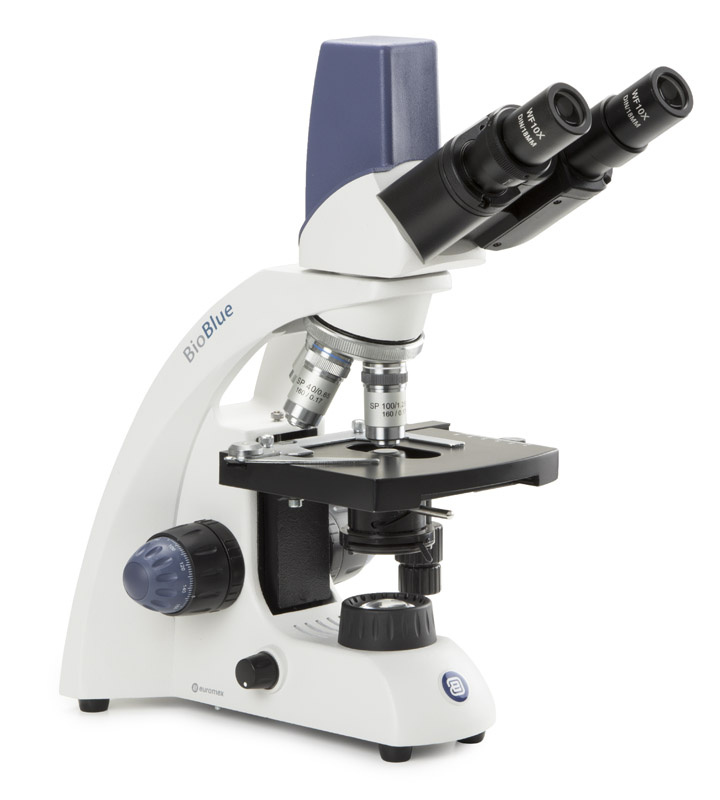

BioBlue BB.4267 Binocular Digital Microscope, 40x, 100x, 400x & 1000x, 5.0 Megapixel Camera, 1W NeoLED™ Cordless illumination
Stream live images direct to your PC with this BioBlue digital microscope from Euromex in the Netherlands. The 5.0 Megapixel camera is built in and ready to use providing the ability to use the eyepieces and view images on a PC screen simultaneously. BioBlue microscopes are designed for education offering excellent optical and ergonomic performance to satisfy the needs of the classroom. Incorporating a range of professional features and robust construction BioBlue microscopes offer incredible value for money.
This BioBlue model, BB.4267, is equipped with a binocular head, 45° inclined 360° rotating, having WF 10x/18mm eyepiece with pointer and built-in 5.0MP CMOS camera with USB-2 interface. Semi plan achromatic objectives, 4x, 10x, S40x & S100x provide crisp high resolution images at 40x, 100x, 400x and 1000x magnification remaining perfectly in focus when changing magnification. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput.
The ImageFocus Plus software is bundled with the product so you can easily show live images on a monitor or projector and directly capture images, videos and time lapse videos. The software also allows you to take calibrated measurements in live or still images and to perform annotations on recorded images. Compatible with Windows 7, 8 and 10, both 32 and 64 bits. A MacOS version is also available.
Stage & Focusing
Featuring an integrated 130 x 130 mm mechanical stage with 70 x 28 mm X-Y movement. Coaxial coarse and fine focus adjustment is provided with 200 graduations. Precision of 2 μm with 0.4 mm per rotation. Total travel is approximately 23 mm with adjustable rack stop to prevent damage to samples and objectives. The course adjustments are equipped with friction control.
Condenser & Illumination
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder. Adjustable illumination is provided by 1W NeoLED™ illumination which offers which offers increased light output than standard LED and longer life than conventional halogen bulbs.
Supplied with an external 100-240 V mains adapter/charger and 3 rechargeable batteries for corded or cordless use. Easy transportation with ergonomic carrying handle.
Polarisation can be added with optional analyser mounted in a slider and rotatable polariser. View alternative models of BioBlue range on the Similar Products Tab.
Features include:
- Binocular head 45° inclined 360° rotating
- WF 10x/18 mm eyepieces
- 5.0 MP Built in Camera, resolution 2560 x 1920 pixels
- Image Focus Plus Software for Windows
- Reversed quadruple nosepiece on ball bearings
- Semi-pan achromatic objectives 4x, 10x, S40x & S100x
- Total magnification 40x, 100x, 400x & 1000x
- Integrated X-Y mechanical stage 70 x 28mm movement
- Coaxial coarse and fine focus adjustment with rack stop
- Height adjustable Abbe condenser with iris diaphragm and filter holder
- Ergonomic stand with carrying handle
- Battery powered cordless use
- 1W NeoLED™ illumination dimmable
- 10 Year warranty (2 years for electrical parts)
- Dimensions in mm: 360 (h) x 155 (w) x 230 (d)
- Weight 4.1kg
Box contains
Microscope, power cord, dust cover, spare fuse, 5 ml immersion oil and user manual. All packed in styrofoam case.
See the Euromex Academy for a manual.
